GDI Plus

1 September 2005

background:

I have always been surprised at the state of affairs of any graphics api, but perhaps it is because I was spoiled in the early 1980's, by the fine work done by Bill Atkinson with the Macintosh Quickdraw. It was perhaps that Atkinson worked more independently than his successors, that his work was better thought out, more consistent, elegant and well documented that it in many respects is better than what we have today. I recall with early windows 32 bit api's they had largely borrowed form QuickDraw, filling in many of QuickDraw's shortcomings with novel ideas of their own. The problem was, and even today still is with GDI plus enhancement, that for every shortcoming that is corrected, new and obvious inconsistencies, mistakes, misdirections, and just plain slop are introduced. I was recently asked to show a machine vision expert and mathlab level programmer how to throw some bits and bytes / pixels on the screen. Not having done this in four years it was a painful experience, just to re figure what was the proper way to access the pixmap. Of all the interfaces what was the one that really worked, while the others were just for this application or these conditions or dead ends when somebody started to generalize functionality and then just gave up. I left my friend with an example and many bytes, bits, code fragments and spare parts lying around like some cluttered and dirty old automobile garage. Then a couple of months later I happened across the latest Microsoft improvement called GDIplus. How come I couldn't find this in the help system when I was in their developer environment before?

comments:

For the windows Vis.Net, lookup gdiplus, the big differences are

It needs to be initialized and released at the beginning and end of any windowing program. (Presumably because it lives in a truly non-shared environment, unlike before where one program could break how another rendered.)
The vector graphics operations go through a common transformation operation. Scaling, rotation, filters (anti-alias), are all implemented as well as a stack based approach to the currently selected transformation. Other hints are included here like, quality v. speed, selection.
The interface between the vector graphics and the pixel graphics is much better. It is much easier to draw some vector graphics into a Bitmap buffer and then read/write over what was drawn. It would be really good only the Bitmap, Graphics and such interfaces are hopelessly confused. (Nothing that a good simple wrapper can't clean up though!).
Other interfaces for common objects have been cleaned up a bit. Pen(s), Brush(es) and such are true objects, Paths added etc. In the two steps back department Bitmaps, Images and such are designed poorly and take on whole bunch of tasks/responsibilities belonging elsewhere. Interfaces that you may regularly use require the obligatory obj->func(obj->attrib1, obj->attrib2, obj->attrib3, ..., obj->attribn); have you hold state information arbitrarily (sound like CPen and CBrush?). In all lots of misdirection. Oh well. I note that in the code everything seems to break down to C calls and when the API is actually using the CPU clock your really in traditional GDI world with ::StretchBlt.

example:

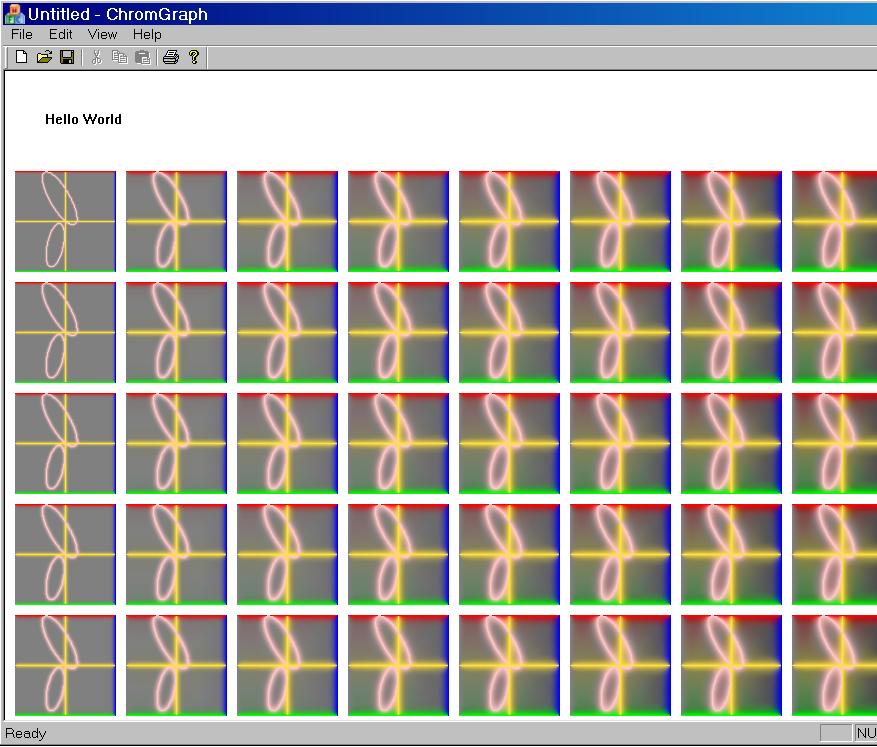

The following very quick Windows example shows

standard simple vector drawing
vector drawing with stretching, and 2D rotation
access to and modification of the GDI Plus vector graphics in pixel plane. What I have done is blur by averaging adjacent pixels followed by reinforcement of the original vector graphics. The blurring should cause the colors to bleed to a colored equilibration, but I think that it fades to gray due to round down error.
that even with such a small example you may need to concern yourself with optimization. I have done just a little bit of thinking on the subject and can see no way to generally optimize byte plane graphics. The buffer would need to be retyped depending on the transformation and its optimum storage and transformation seems widely dependent on what exactly you would hope to achieve

This example is almost 1K lines of code. All but perhaps near 100 are the MFC auto generated.
Development environment Microsoft Visual C++.net V7.1, but it would be pretty trivial to port it to earlier versions.
Download Project, source (~50kb)
